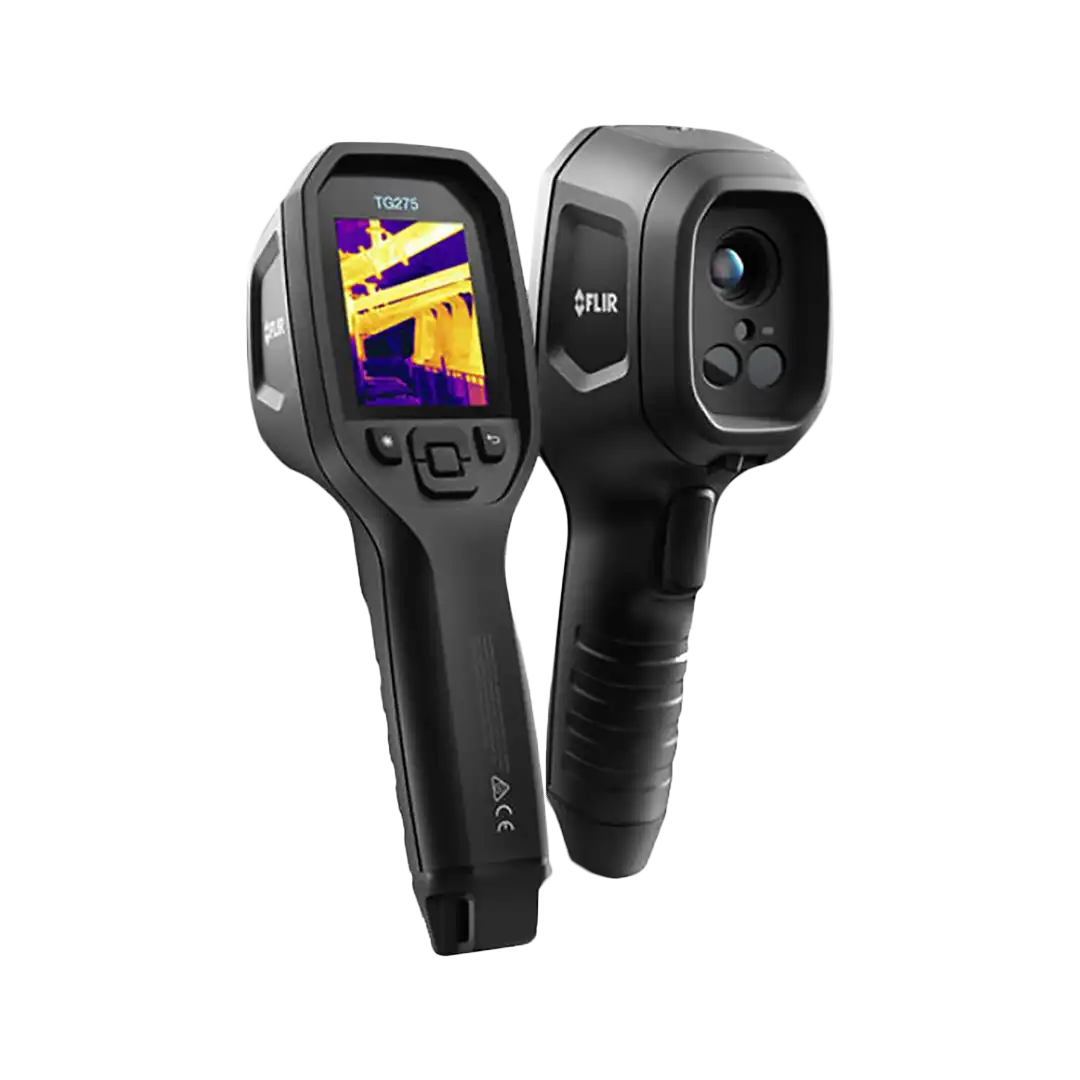

FLIR TG275 Thermal Camera for Automotive

Thermal Imaging Resolution: 160 × 120 pixels (19,200 pixels) for detailed thermal imagery.
Temperature Measurement Range: -25°C to 550°C (-13°F to 1022°F), suitable for various automotive applications.
Accuracy: ±1.5°C (±2.7°F) for temperatures between 50°C and 100°C (122°F to 212°F); up to ±3°C (±5.4°F) for temperatures below 50°C (122°F) and above 100°C (212°F).
Thermal Sensitivity (NETD): <70 mK, enabling detection of subtle temperature differences.
Field of View (FOV): 57° × 44° for a broad viewing area.
Distance-to-Spot Ratio: 30:1, allowing precise measurements from a safe distance.
MSX® Image Enhancement: Multi-Spectral Dynamic Imaging overlays visual details onto thermal images for improved clarity.
Display: 2.4-inch color LCD with 320 × 240 pixels resolution for clear image viewing.
Image Storage: 4 GB internal memory, capable of storing up to 50,000 images in JPEG format.
Battery Life: Approximately 5 hours of continuous scanning; rechargeable via USB-C.
Durability: Designed to withstand a 2-meter (6.6 feet) drop; IP54-rated for protection against dirt, dust, and oil.
Emissivity Correction: Four preset levels with custom adjustment from 0.1 to 0.99 for accurate measurements on various surfaces.
Color Palettes: Offers multiple options, including Iron, Rainbow, White Hot, Black Hot, Arctic, and Lava, to suit different inspection needs.
Worklight: Built-in LED flashlight to illuminate dark, hard-to-reach areas during inspections.
Compact and Lightweight: Measures 210 × 64 × 81 mm (8.3 × 2.5 × 3.2 inches) and weighs 0.394 kg (13.9 ounces), making it portable and easy to handle.
