Gas DetectIR VOC | Gas Leak Detection Camera
Back to All Equipment

Gas DetectIR VOC | Gas Leak Detection Camera

Handheld Gas Leak Infrared Camera

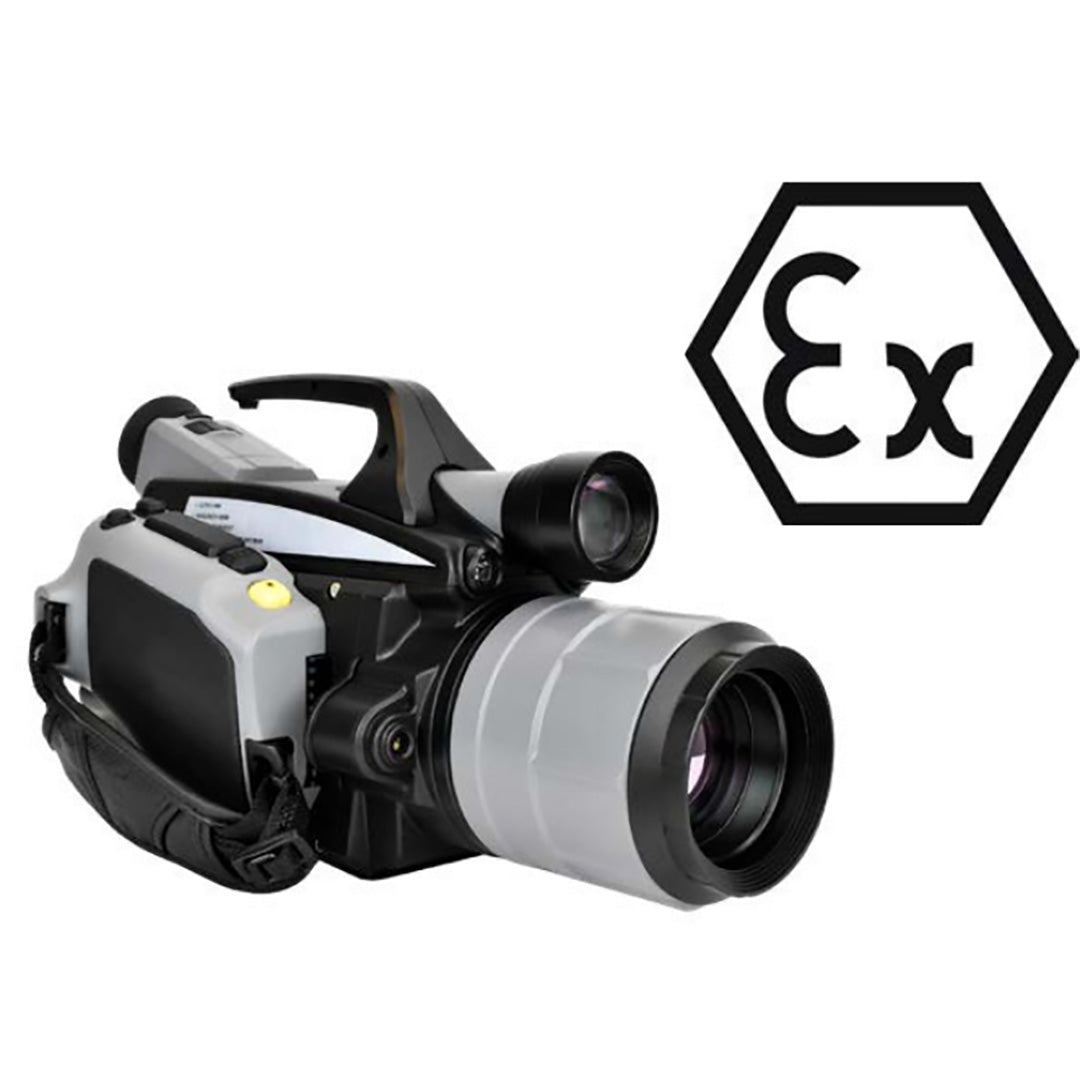

  • The Gas DetectIR VOC is an ATEX certified explosion proof infrared camera capable of delivering the optimum solution for the detection of methane and other organic gases.
  • Its Type II MWIR cooled detector displays 320 x 256 pixels on a rotatable 3.5” (640 x 480) LCD screen and tilt-able high resolution viewfinder for higher resolution imaging.
  • Easy to use interface allows for intuitive operation.
  • The Gas DetectIR VOC has 60 seconds of voice annotation, which is stored together with the image.
  • Additionally, it is compact and portable, enabling users to quickly pinpoint the failure and give clear vision of leaking gases.
  • Includes ICI Reporting Software.
Gas DetectIR VOC | Gas Leak Detection Camera

Featured Product Videos

  • red star icon Unmatched gas detection
  • red star icon ATEX certified - explosion proof
  • red star icon Detects over 18 gases
  • red star icon Rotatable 3.5”, 640 x 480 LCD screen
  • red star icon Tiltable high-definition viewfinder
  • red star icon 60 Seconds voice annotation per image

Specifications

  • Pixel Resolution: 320 x 240
  • Accuracy: ± 2°C (± 3.6 °F) or ± 2%
  • Temperature Range:
    • -20 °C to 160 °C (-4 °F to 320 °F)
    • 60 °C to 180 °C (140 °F to 356 °F)
    • 180 °C to 350 °C (356 °F to 662 °F)
  • Operation Range: -15 °C to 50 °C ( 5 °F to 122 °F)
  • Storage Range: -40 °C to 70 °C (-40 °F to 158 °F)
  • Detector Array: custome
  • Focus: automatic / manual
  • FOV: 24° x 18°
  • IFOV: 1.31 mrad
  • Spectral Band: 3 μm to 5 μm
  • Thermal Sensitivity (NETD): < 15 mK
  • Frame Rate: 50 Hz
  • Dynamic Range: 16-bit
  • Humidity: 10% to 95% non-condensing
  • Pixel Operability: > 99 %
  • Dimensions (without lens): 292 mm x 148 mm x 136 mm (L x W x D ± 0.5 mm)
    (11.50” x 5.83” x 5.35” (L x W x H ± 0.02”))
  • Power: 12V DC/AC
  • Battery: Li-ion, rechargeable, replaceable
  • Operation Time: ≥ 3 Hours
  • Charging Time: 3 Hours
  • Start Up Time: ≤ 5 minutes
  • Weight: ≤ 2.6 kg (5.73 lbs)
  • Interface: USB 2.0
  • Viewfinder: color OLED
  • Video Format: IRV or AVI
  • Video Output: AV
  • Image Format: IR IMA (with data) + visible JPG
  • Image Polarity: 6 options
  • Memory: SD Card (up to 32 GB)
  • Emissivity Correction: 0.1 to 1.0
  • Screen: 4:3, 3.5” LCD screen, 640 x 480
  • Digital Camera: 5 MP
  • Zoom: 1x - 8x continuous
  • Voice Annotation: 60 seconds per image
  • Protection: IP54, IEC IEC 529, ATEX - explosion proof
  • Laser: Class II 635 nm, < 1 mW
  • Internal non-uniformity correction (NUC)

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

Downloads

Options / Accessories

  • IR Flash Software
  • Windows 32-bit SDK
  • Linux SDK (x86, x64 and ARM)

Applications

  • Gases Detected:
    • Benzene - 3.5 g/hr
    • Ethanol - 0.7 g/hr
    • Ethylbenzene - 1.5 g/hr
    • Heptane - 1.8 g/hr
    • Hexane - 1.7 g/hr
    • Isoprene - 8.1 g/hr
    • Toluene - 3.8 g/hr
    • Methanol - 3.8 g/hr
    • MEK - 3.5 g/hr
    • Pentane - 3.0 g/hr
    • Xylene - 1.9 g/hr
    • Butane - 0.4 g/hr
    • Ethane - 0.6 g/hr
    • Methane - 0.75 g/hr
    • Propane - 0.4 g/hr
    • Ethylene - 4.4 g/hr
    • Propylene - 2.9 g/hr
    • MIBK - 2.1 g/hr
    • Octane - 1.2 g/hr
    • 1-Pentene - 5.6 g/hr
